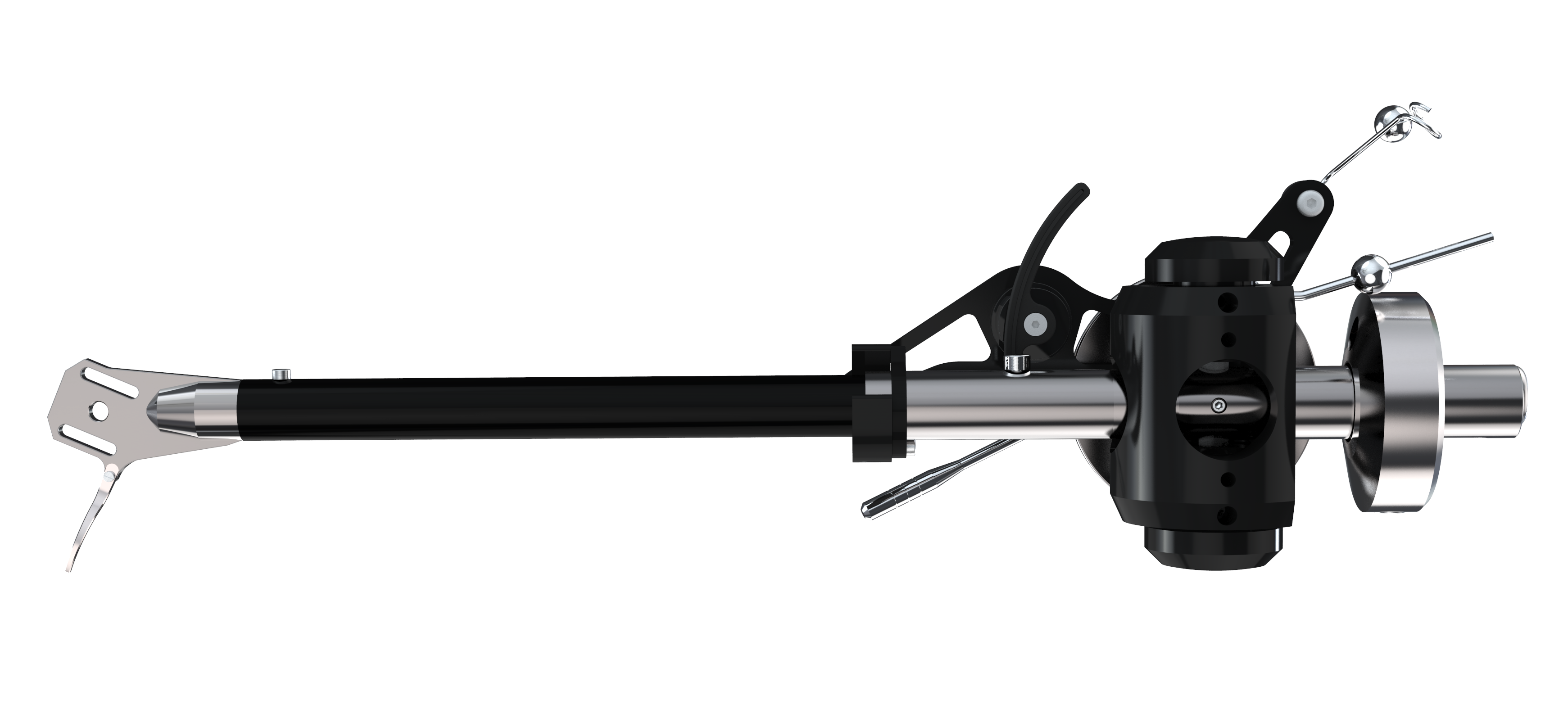

This is the simplest case so we put it first. Rega arms and their modified versions (i.e Michell, NAD etc) are easy to replace with an Origin Live arm. All standard length (239mm) Origin Live arms will fit directly into all standard Rega armboard mounts. No additional holes are needed, no modifications, no extra fittings, no VTA adjusters. This easy swap is down to the geometry of Origin Live arms being identical to all Rega arms.

It makes no difference if the Rega mount you have is the later 3 point mounting or earlier single hole mounting. Neither does the model number or vintage of a Rega arm make any difference.

The only question some people raise after fitting their Origin Live arm is that 3 mounting holes remain visible if the mount is the 3 point type of Rega mount. The solution to tidy up the looks is either to fill the 3 holes with dummy round head M3 Allen bolts or you can order a 1mm thick Formica black disc from us to cover the holes > see link Disc to cover 3 Rega mounting holes.  Other solutions include simply cutting a cover disc from a black card or thin plastic.

Armboards & Mounting Position

Hole Diameter: You can fit Origin Live arms to any deck but sometimes your armboard may need modification or changing to a new one – (contact a dealer or the turntable manufacturer for the second option). The tonearms require a single hole in the armboard or plinth – from 23mm to 25mm in diameter (23mm is ideal for accurate fit). If the hole in your armboard is say 1mm or more oversize then all you need to do is centralize the arm in the hole. For best performance, you do not want a tight fit and so all you need to do is put a rubber band or wrap a shallow strip of card around the arm base – anything that will act as a spacer – it does not need to be machined sleeve.

Armboard Thickness: Once the arm is inserted through this hole, you secure it with a large nut under the armboard which clamps it in position. The armboard can be any thickness up to 25mm for this to work.
*  You need not worry about VTA for Encounter arms and above as they have integral VTA adjustment.
*  Arms below Encounter use VTA adjustment on the arm mounting thread itself so arm boards need to be around 20mm or less to allow adjustment.

The distance from the centre of the armhole to the centre of the platter spindle needs to be 222mm plus or minus 1mm. The arms can rotate to be clamped at any angle. The effective length of the arm from its mounting hole centre to the cartridge end of the arm is 240mm. The arm protrusion from the pivot point to the rear is 50mm to the end of the counterweight stub.

For Encounter Arms and Above – If the top of the armboard is around 24mm below the top of the platter then the arm will be at its lowest position for tracking a normal cartridge (17mm body height) and can be raised by a further 14mm

For 12-inch Arms Only – Centre of 23mm – 25mm diameter hole for arm mount to centre of platter spindle is 295.6mm plus or minus 1mm. The length of the arm from its mounting hole centre to the cartridge end of the arm is 309mm. The overhang from the pivot point at the rear end is 50mm to the end of the counterweight stub.

Note: Cartridge alignment is at best only ever a compromise. A cartridge is only aligned at 2 points on the record – For the remainder of positions on the record it’s out of alignment – We say this to save fretting over the last 0.5mm accuracy and give a bit of perspective. Alignment makes an audible difference but on the scale of other parameters, it’s really not a lot.



If you have a Linn LP12 turntable with a Linn arm then the armhole on your current armboard will be in the wrong position (Linn arms mount at a distance of 211mm from the platter spindle). We can supply you with a Pre-drilled armboard for the Origin Live and Rega arms at £27 – this board is identical to the Linn armboard but is missing the Linn Logo. Alternatively, you can get a blank arm-board from Linn and get it drilled. This is simple to fit.

On newer Linns the wooden corner brace has been increased in size which creates a slight foul with Standard size Origin Live and Rega arms. This is easy to rectify by removing a small semi-circle of the brace. Probably the quickest way to achieve this is to drill a series of 4mm holes as close as possible to one another in the shape of the cut out you need. Then finish off the job with a chisel.

After fitting a new arm you can find printable instructions for setting up your Linn at Linn Sondek LP12 turntable instructions

Alternatively, you can order all Origin Live arms with “Linn geometry” – see arm options in the ordering process. This means the arm effective length is manufactured as identical to Linn geometry. We also provide a sleeve/base which allows you to fit Origin Live arms directly to your existing Linn arm board. This overcomes the problem with some later Linn decks where the armboard is integral with the sub-chassis and thus non-detachable.



If your arm has an SME mount there is an adaptor plate available on this website which bolts to your existing mount and provides the correct hole and position for mounting Origin Live arms – see Accessories > Vinyl > Adaptors

Modifying Your Current Arm Board

If you modify your current armboard you will need to cut a hole in the board to locate the arm at the dimensions given above. This will leave you with the old hole looking unsightly. To hide this, make up a large circular plate washer of black card, aluminium or other material and glue this to the armboard – the spacing washers we supply with a new arm have an outside diameter of 48mm and will normally fulfil this function for most situations (the thickness of the washer is 1.5mm or 4mm). The advantage of glueing the washer to the armboard is that it also locates the arm in the correct position.

Arm Heights

For Enterprise to Renown

Min | Max height between the top of armboard and underside of headshell is 40mm to 55mm (i.e 15mm upward adjustment)

For Encounter to Conqueror arms

Min | Max height between the top of armboard and underside of headshell is 39mm to 54mm (i.e 15mm upward adjustment)

For Alliance to Zephyr

When fitted to a 4mm thick armboard – The height between the top of the armboard and the underside of the headshell is 43mm(i.e 30mm upward adjustment). For every 1mm extra thickness of the armboard deduct 1mm from upward adjustment (30mm).

Cartridge heights normally vary from 15mm to 18mm with 17mm being the average
